Using the color picker

Capital Electra X's color picker contains an extensive palette of colors to ensure you get to create beautiful diagrams easily. In addition, it contains many recently used colors that reduces your work and yet offers powerful tools to set and configure both colors and gradients.

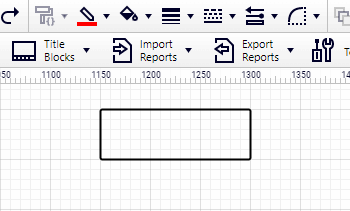

Single click to set most recent color

To improve productivity, Capital Electra X's font color, stroke color and fill color contains the most recently used color. A single click on the icon, will set your shapes to this most recent color.

Clicking on the drop down icon to the right, will show the color picker.

Setting text stroke color

To set text stroke color:

• Click text block tool icon

• Select text you wanted to modify
• Click on the line color icon, and select a color

Setting background color on the text

To set backgound color on the text:

• Click on a shape, then on the text block tool
• Click on the fill color icon, and select a color

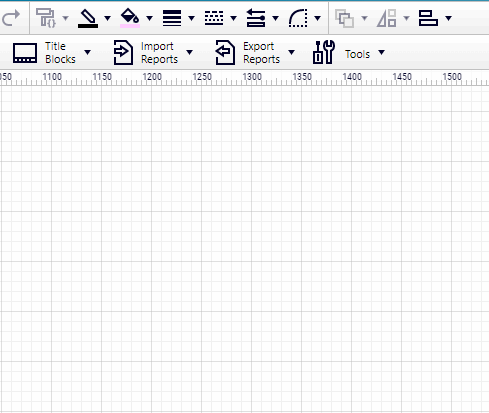

Using default colors

To set default colors:

• Click on anywhere on the drawing and ensure no shape is selected
• Click on font, fill or stroke color and select a color

Once a default color is set, newly created shapes will assume the default colors, and these default colors will be saved across devices.

Setting colors quickly

A single click on any colors on the color picker will set your shapes to the intended color.

To set custom colors, or customize your gradients, click on the More > button.

See also: Designing Capital Electra X's color palette

Customizing colors

To customize a color:

• Click on the More > button
• Click on a color, and use text input or sliders

Customizing gradients

Add more stops to a gradient

To add more stops:

• Click on any position of the Stops slider

Remove a stop from gradient

To remove a stop:

• Select a stop
• Click on the x button

Saving customized gradients

To save a gradient:

• Drag and drop the gradient icon to the left

Resetting saved gradients

To reset:

• Click and select a saved gradient, then click the reset icon

Using colors and gradients across multiple devices

Recent colors and saved gradients you made on your color picker will automatically be saved, so you can use the same colors across multiple devices.

Using the color palette

To access color palette:

• Click the palette icon
• Use the pointer or the slider to choose color
